Enhancing Performance and User Experience

Introduction

In outdoor industrial product design, the integration of Color, Material, and Finish (CMF) plays a crucial role in creating products that are not only functional but also aesthetically pleasing and durable. Whether it’s construction equipment, agricultural machinery, or outdoor lighting, the right CMF choices can significantly enhance user experience and overall product performance. This article will delve into how to effectively utilize CMF elements in outdoor industrial product design, providing specific examples of colors, materials, and their manufacturing processes.

The Importance of CMF in Outdoor Industrial Products

1. CMF-Color (C)

Safety and Visibility:

• High-Visibility Colors: In outdoor industrial environments, safety is paramount. Using high-visibility colors such as fluorescent yellow (e.g., RAL 1033), orange (e.g., RAL 2004), or red (e.g., RAL 3020) can increase the visibility of equipment, reducing the risk of accidents. For example, construction vehicles and machinery often use these colors.
• Brand Recognition: Consistent color schemes help establish brand recognition. For instance, Caterpillar’s iconic yellow (RAL 1035) has become synonymous with the brand.
• Environmental Adaptation: Colors should be chosen based on the usage environment. For example, equipment used in desert areas may need light tones to reflect sunlight, while equipment used in forests or fields may benefit from darker tones to reduce the visibility of stains. Common weather-resistant color standards include RAL 7035 (light gray) and RAL 6011 (olive green).

2. CMF-Materials and Manufacturing Processes (M)

Weather Resistance and Durability:

• Metal Materials:
  • Stainless Steel:
    • Material Properties: Stainless steel offers excellent corrosion resistance and strength, making it ideal for critical components in outdoor equipment.
    • Common Grades: 304 stainless steel is suitable for general corrosive environments, while 316 stainless steel is ideal for marine and high-salt environments.
    • Manufacturing Processes:
      • Welding: Gas shielded welding (e.g., TIG welding) is used to join stainless steel parts, ensuring structural integrity.
      • Stamping: Stamping processes are used to form stainless steel sheets into complex shapes.
  • Aluminum Alloys:
    • Material Properties: Aluminum alloys offer good corrosion resistance and lightweight characteristics.
    • Common Grades: 6061 (suitable for structural components) and 5083 (suitable for marine environments).
    • Manufacturing Processes:
      • Extrusion: Extrusion processes are used to create aluminum profiles, ideal for frames and supports.
      • Casting: Gravity casting or pressure casting is used to produce aluminum castings, suitable for complex shapes.
      • Forging: Forging processes are used to manufacture high-strength aluminum components, suitable for critical load-bearing parts.
• Engineering Plastics:
  • Polycarbonate (PC):
    • Material Properties: Polycarbonate offers excellent transparency and impact resistance, making it ideal for transparent covers in outdoor lighting.
    • Common Brands: Lexan.
    • Manufacturing Processes:
      • Injection Molding: Injection molding is used to create complex transparent parts, such as light covers.
      • Extrusion: Extrusion processes are used to create long, flat transparent sheets, such as sound barriers.
  • Polyamide (PA):
    • Material Properties: Polyamide offers good wear resistance and chemical resistance, making it ideal for gears and bearings.
    • Common Grades: Nylon 6/6.
    • Manufacturing Processes:
      • Injection Molding: Injection molding is used to create complex plastic parts, such as gears and bearings.
      • Extrusion: Extrusion processes are used to create long, flat plastic sheets, such as slides.
  • Polypropylene (PP):
    • Material Properties: Polypropylene offers good weather resistance and chemical resistance, making it ideal for outdoor furniture and water tanks.
    • Manufacturing Processes:
      • Injection Molding: Injection molding is used to create complex plastic parts, such as tank lids.
      • Blow Molding: Blow molding is used to create large hollow containers, such as water tanks.
• Composite Materials:
  • Glass Fiber Reinforced Plastic (GFRP):
    • Material Properties: GFRP offers high strength and lightweight characteristics, making it ideal for components that need to be lightweight yet strong.
    • Manufacturing Processes:
      • Hand Lay-Up: Hand lay-up processes are used for small batch production.
      • Resin Transfer Molding (RTM): RTM is used for large-scale production, where resin is injected into molds.
  • Carbon Fiber Reinforced Plastic (CFRP):
    • Material Properties: CFRP offers even higher strength and stiffness, making it ideal for high-performance applications.
    • Manufacturing Processes:
      • Prepreg Lay-Up: Prepreg lay-up and autoclave curing are used for high-performance components.
      • Filament Winding: Filament winding and resin impregnation are used for tubular and cylindrical components.

Sustainability:

• Recycled Materials:
  • Recycled Aluminum:
    • Material Properties: Recycled aluminum offers similar properties to virgin aluminum and is widely used in outdoor furniture and fencing.
    • Manufacturing Processes:
      • Extrusion: Extrusion processes are used to create recycled aluminum profiles, ideal for frames and supports.
      • Casting: Casting processes are used to produce recycled aluminum castings, suitable for complex shapes.
  • Recycled Plastics:
    • Material Properties: Recycled plastics such as HDPE and LDPE are used for outdoor trash bins and signage.
    • Manufacturing Processes:
      • Injection Molding: Injection molding is used to create complex plastic parts, such as bin lids.
      • Blow Molding: Blow molding is used to create large hollow containers, such as trash bins.
• Bio-Based Materials:
  • Bioplastics:
    • Material Properties: Bioplastics such as PLA and PHA can replace traditional petroleum-based plastics, reducing the carbon footprint.
    • Manufacturing Processes:
      • Injection Molding: Injection molding is used to create complex plastic parts, such as signage.
      • Extrusion: Extrusion processes are used to create long, flat plastic sheets, such as decorative panels.
  • Natural Fiber Composites:
    • Material Properties: Natural fiber composites such as bamboo and flax offer good mechanical properties and environmental benefits, making them ideal for outdoor furniture and decorations.
    • Manufacturing Processes:
      • Hand Lay-Up: Hand lay-up processes are used for small batch production.
      • RTM (Resin Transfer Molding): RTM is used for large-scale production, where resin is injected into molds.

3. CMF-Finish (F)

Weather Resistance and Corrosion Protection:

• Powder Coating:
  • Epoxy Powder Coating: Epoxy powder coating offers excellent weather resistance and corrosion protection, making it ideal for outdoor steel structures and guardrails.
  • Polyester Powder Coating: Polyester powder coating offers good weather resistance and chemical resistance, making it ideal for outdoor furniture and decorative items.
• Electroplating:
  • Galvanization: Hot-dip galvanization or electro-galvanization is used to apply a zinc layer to metal surfaces, preventing corrosion. For example, outdoor fasteners and connectors.
  • Nickel Plating: Electroplating is used to apply a nickel layer to metal surfaces, enhancing corrosion resistance and wear resistance. For example, outdoor tools and components.
• Anodizing:
  • Sulfuric Anodizing: Sulfuric anodizing forms a dense oxide layer on aluminum surfaces, enhancing corrosion resistance and wear resistance. For example, outdoor aluminum doors, windows, and decorative items.
  • Hard Anodizing: Hard anodizing forms a thicker, harder oxide layer on aluminum surfaces, suitable for high-wear applications.

Functional Finishes:

• Anti-Slip Treatments:
  • Rubber Coating: Spraying or dipping processes are used to apply a rubber layer to steps and operating platforms, increasing friction and preventing slipping.
  • PVC Coating: Spraying or dipping processes are used to apply a PVC layer to steps and operating platforms, increasing friction and preventing slipping.
• Reflective Coatings:
  • Microprismatic Reflective Film: Microprismatic structures reflect light, enhancing visibility in low-light conditions. For example, traffic signs and road markers.
  • Glass Bead Reflective Film: Glass bead structures reflect light, enhancing visibility in low-light conditions. For example, traffic signs and road markers.
• Antimicrobial Treatments:
  • Silver Ion Antimicrobial Agents: Silver ion antimicrobial agents are added to coatings to prevent bacterial and fungal growth. For example, outdoor water tanks and wastewater treatment equipment.
  • Nano-Titanium Dioxide Antimicrobial Agents: Nano-titanium dioxide is added to coatings to use photocatalytic action to kill bacteria and fungi. For example, outdoor water tanks and wastewater treatment equipment.

CMF Case Studies

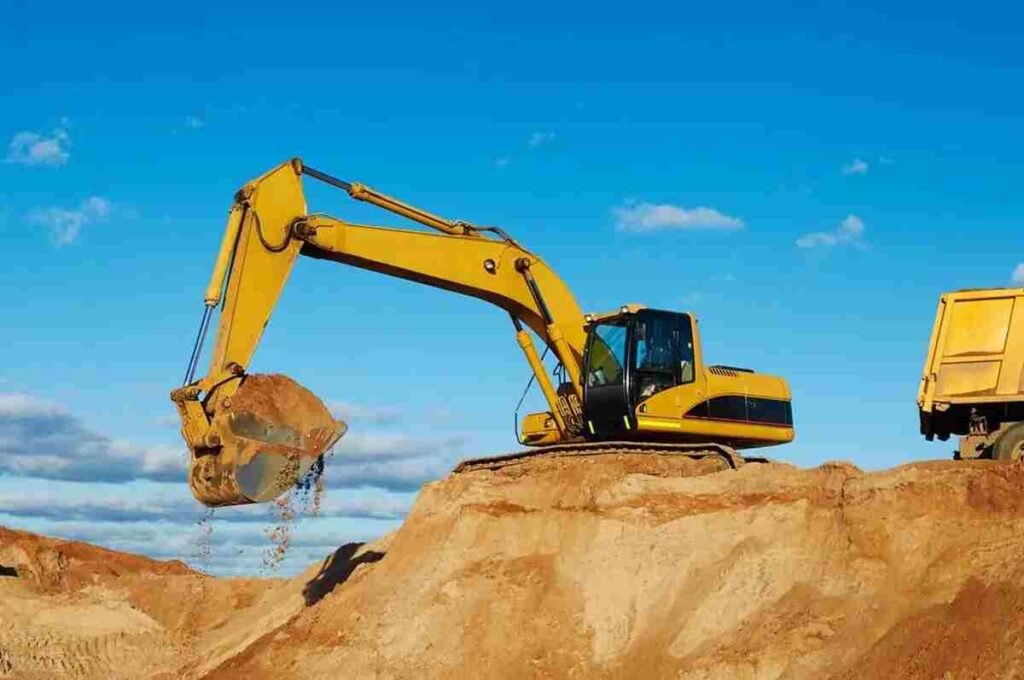

1. Construction Vehicles

• Color: Fluorescent yellow (RAL 1033) or orange (RAL 2004) to enhance visibility.
• Materials and Manufacturing Processes:
  • High-Strength Steel: Used for frames and critical structural components, ensuring structural strength and durability. Joined using welding processes.
  • Aluminum Alloys: Used for body panels and some structural components, reducing weight and enhancing corrosion resistance. Manufactured using extrusion processes.
• Finishes:
  • Epoxy Powder Coating: Enhances weather resistance and corrosion protection.
  • Anti-Slip Treatment: Applied to steps and operating platforms to increase friction and prevent slipping.

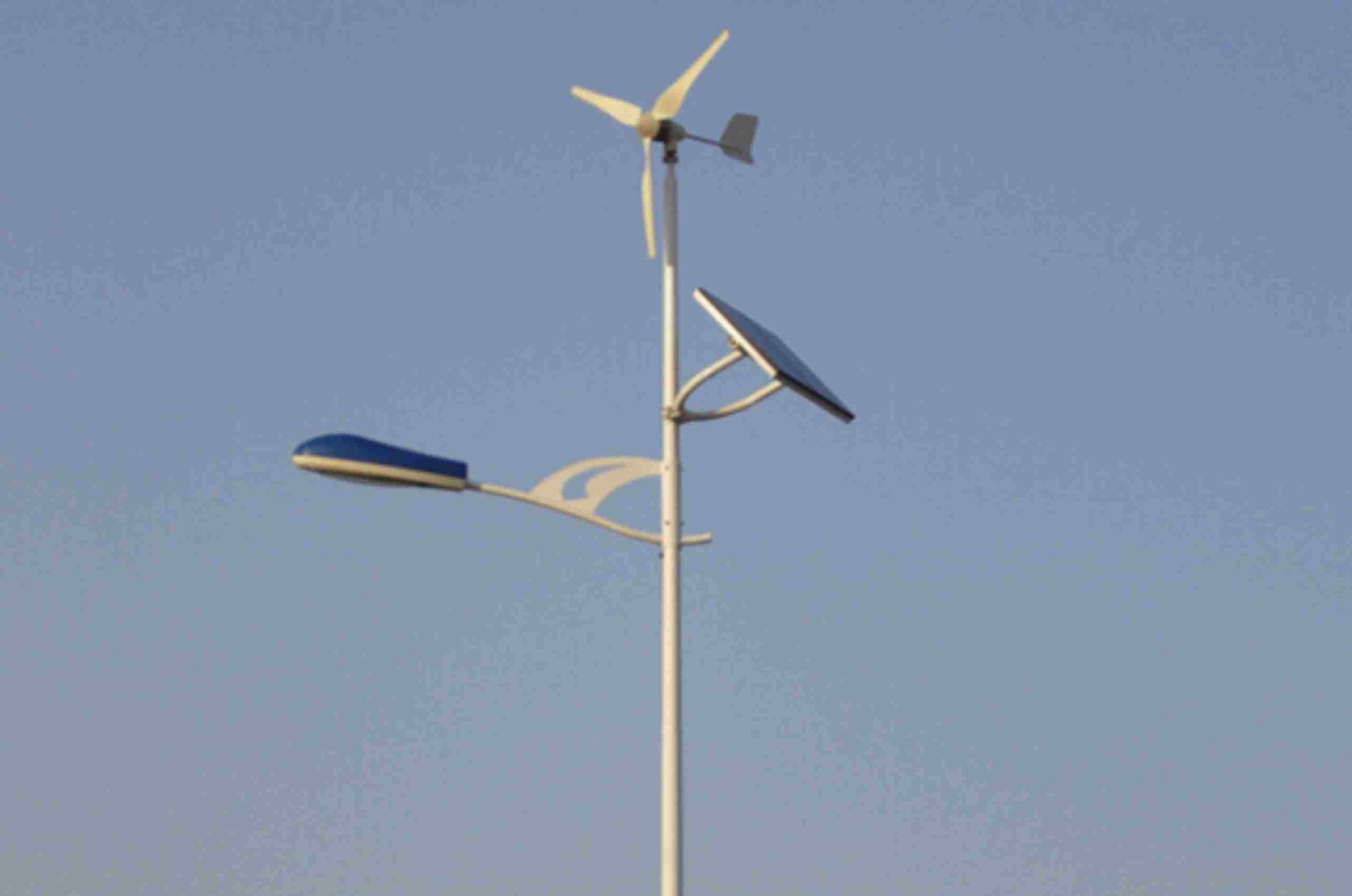

2. Outdoor Lighting Fixtures

• Color: White (RAL 9016) or gray (RAL 7035) to blend with the surrounding environment.
• Materials and Manufacturing Processes:
  • Stainless Steel Enclosures: Made from 304 stainless steel, ensuring corrosion resistance and durability. Manufactured using stamping processes.
  • Polycarbonate Transparent Covers: Made from Lexan polycarbonate, offering excellent transparency and impact resistance. Manufactured using injection molding processes.
• Finishes:
  • Polyester Powder Coating: Enhances weather resistance and chemical resistance.
  • UV Protective Coating: Prevents UV aging, extending the product’s lifespan.

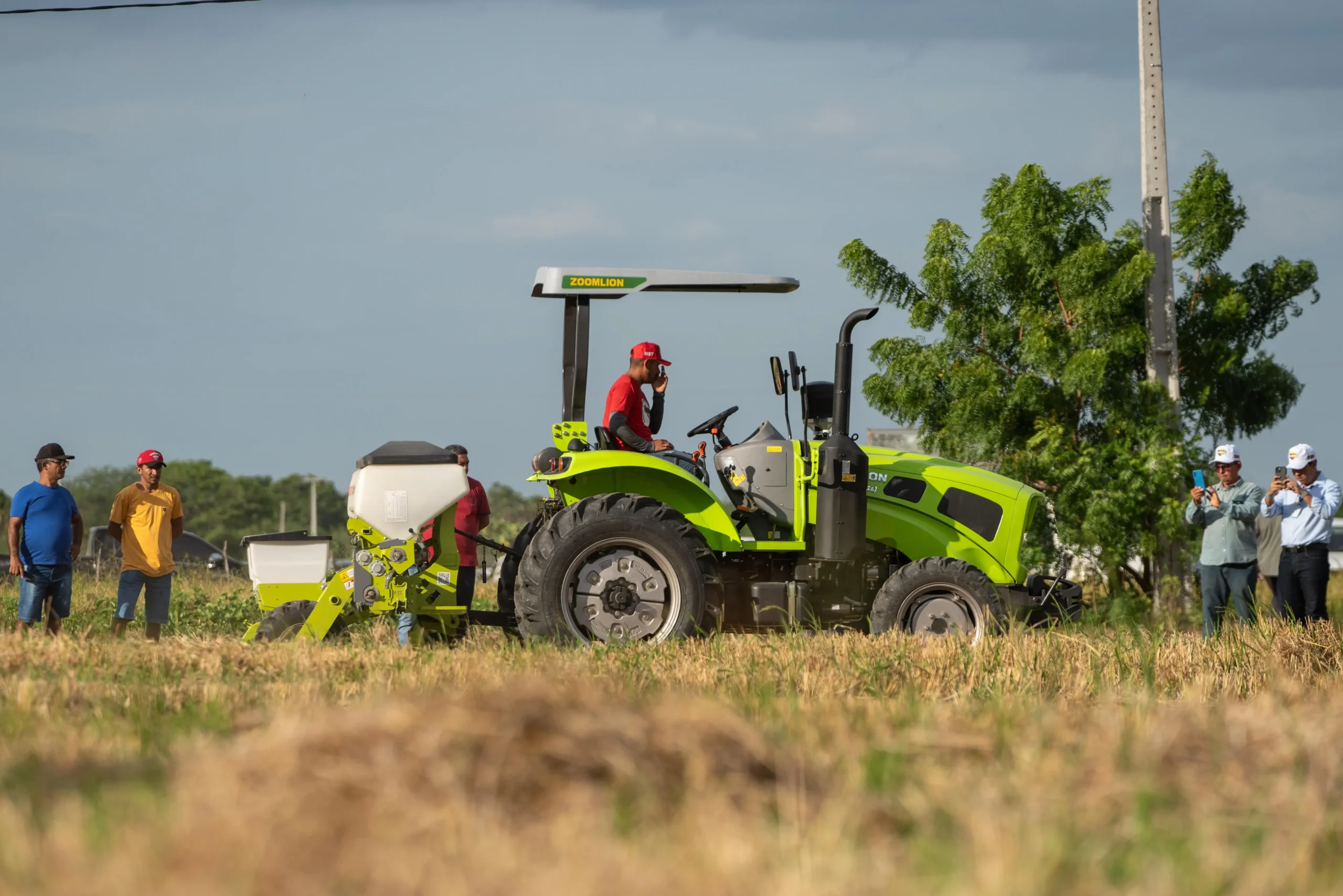

3. Agricultural Machinery

• Color: Green (RAL 6011) or red (RAL 3020) to align with brand identity.
• Materials and Manufacturing Processes:
  • Aluminum Alloys: Used for machine bodies and structural components, reducing weight and enhancing corrosion resistance. Manufactured using extrusion processes.
  • Engineering Plastics: Used for gears and bearings, offering good wear resistance and chemical resistance. Manufactured using injection molding processes.
• Finishes:
  • Electroplating: Galvanization or nickel plating to prevent corrosion of critical components.
  • Anti-Slip Treatment: Applied to operating handles and steps to increase friction and prevent slipping.

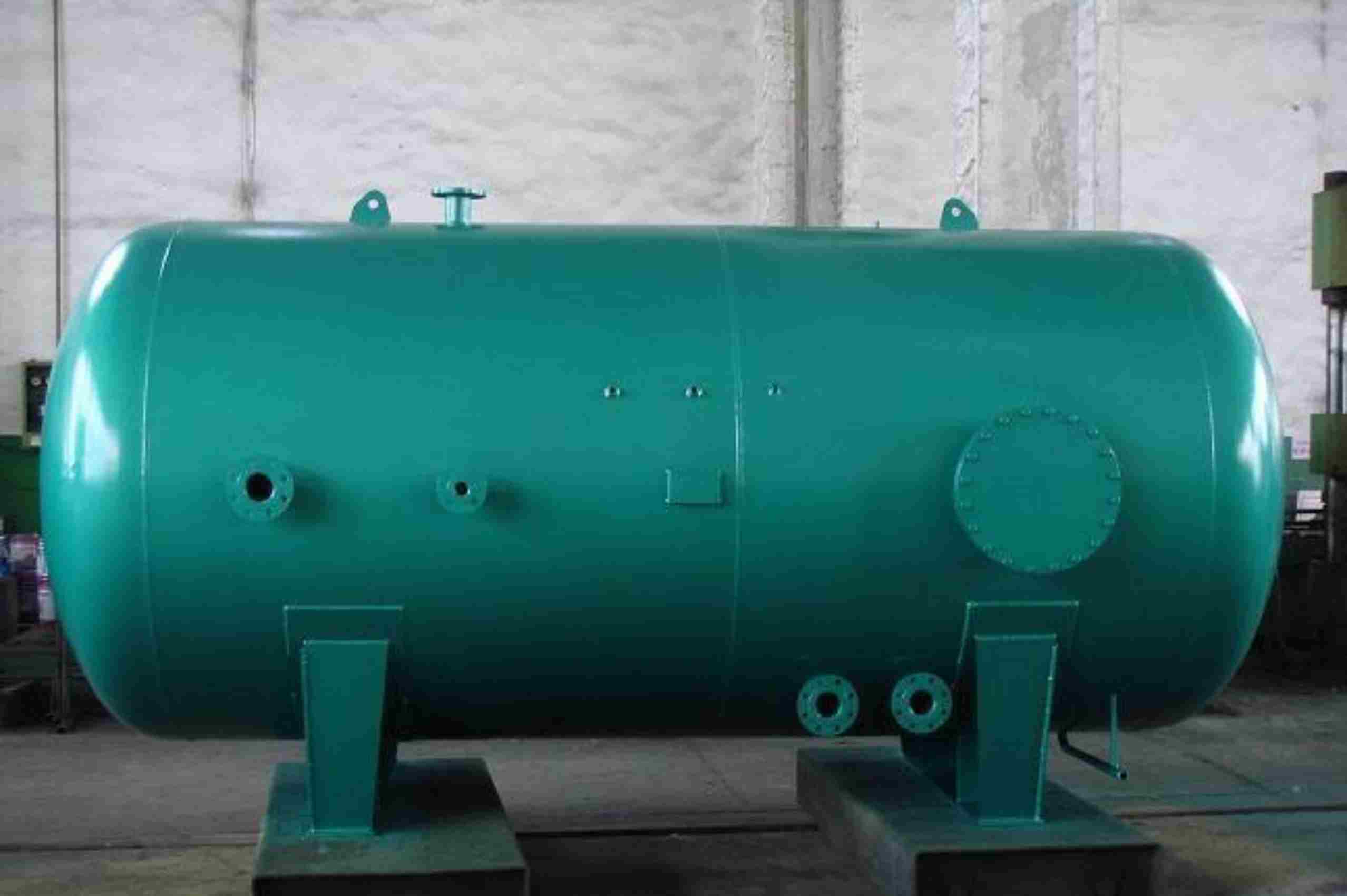

4. Outdoor Water Tanks

• Color: Blue (RAL 5010) or green (RAL 6011) to blend with natural surroundings.
• Materials and Manufacturing Processes:
  • Stainless Steel: Made from 316 stainless steel, ensuring corrosion resistance and durability. Joined using welding processes.
  • Glass Fiber Reinforced Plastic (GFRP): Used for large water tanks, offering high strength and lightweight characteristics. Manufactured using RTM processes.
• Finishes:
  • Antimicrobial Coating: Contains silver ion antimicrobial agents to prevent bacterial and fungal growth.
  • UV Protective Coating: Prevents UV aging, extending the product’s lifespan.

Conclusion

In outdoor industrial product design, the comprehensive consideration of color, materials, and their manufacturing processes, as well as finishes, is crucial for creating products that meet functional requirements and provide an excellent user experience. By selecting high-visibility colors, weather-resistant and durable materials, and effective finishing techniques, designers can create practical and visually appealing outdoor industrial products, ensuring users can safely and efficiently complete their tasks.
